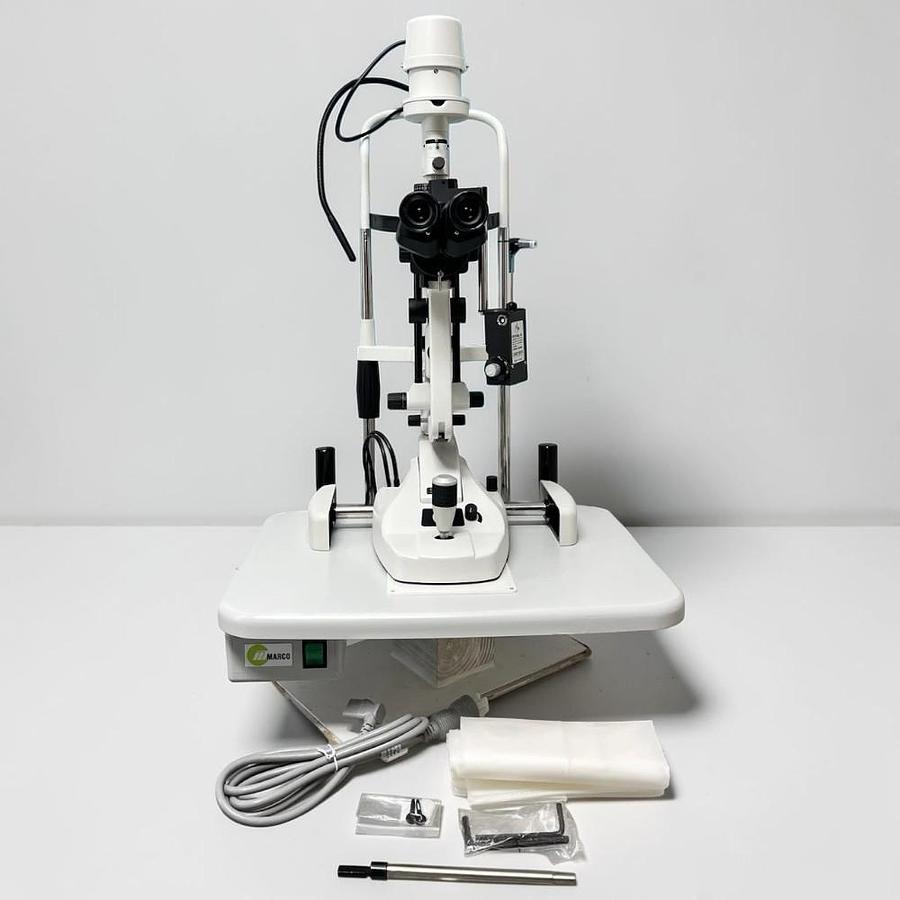

Marco SL-B3 LED Slit Lamp- Ophthalmic Equipment

The Marco SL-B3 LED Slit Lamp is a current model unit. It is a 3X magnification LED unit (10,16,25) with the rheostat on the base. The M2 comes fully refurbished by an in house trained and certified technician. We check each unit mechanically, optically, and cosmetically with FREE lifetime phone support and a 6 month parts and service warranty.

FEATURES

• Tower-style illumination
• 3-step magnification (10x, 16x, 25x)
• Parallel/Galilean optics
• Patient fixation target is a red LED on a continuously flexible shrouded cable
• Self-contained headrest and base plate assembly

SPECIFICATIONS:

Optical System

• Binocular Type: Galilean Parallel (8° Converging)
• Magnification: 10x, 16x, 25x
• Eyepiece: 12.5x
• Field of View: 22, 14, 8.5 mm
• PD Range: 49–77 mm
• Diopter Adjust: -8 to +8 D
• Objective Lens Focal Distance: 107 mm
• Objective Lens Convergence Angle: 13°

Slit Projection System

• Slit Width: 0–12 mm Continuously Variable
• Slit Length: 12 mm (1 mm–12 mm Continuously Variable)
• Aperture Diameters: 0.2, 1 mm Square, 2, 3, 5, 9 and 12 mm
• Filters: Clear, Red Free, Neutral Density, Blue, Yellow, Diffuser Lens, IR Heat Absorbing Filter Permanently Installed
• Slit Angle: +/- 90° Continuous
• Slit Rotation: +/- 180° with Reference Scale
• Slit Vertical Tilt: 0°, 5°, 10°, 15° and 20°

Base, Movement, and Light Source

• Base Travel: 25 mm Z‒Axis, 107 mm X‒Axis, 110 mm Y‒Axis
• Horizontal Fine Adjustment: 12 mm
• Chinrest Elevation Adjustment: 70 mm
• Table Top Dimensions: 405 x 500 mm
• Fixation Lamp: Flexible LED
• Light Source: LED
