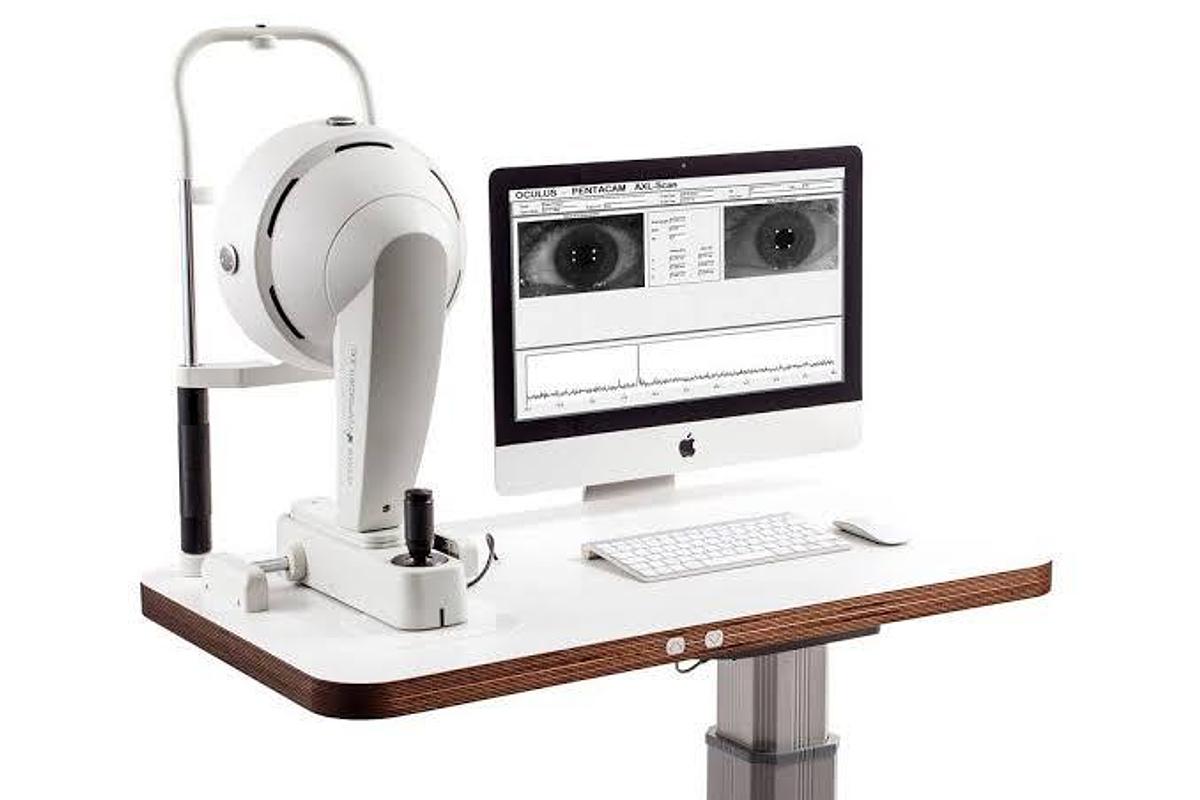

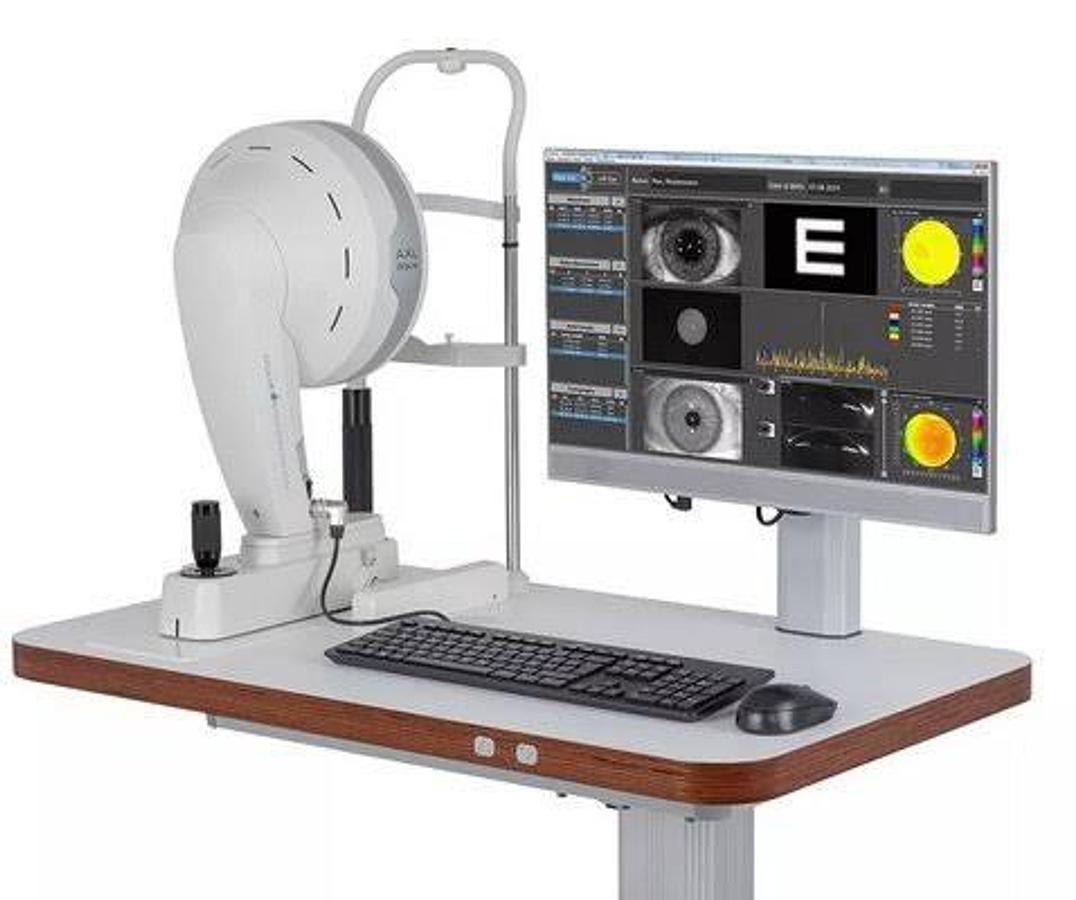

Oculas Pentacam AXL Corneal Topographer- Ophthalmic Equipment

The Oculus Pentacam is a highly advanced, non-contact diagnostic device used by ophthalmologists and optometrists to map and measure the anterior (front) segment of the eye. It uses a rotating Scheimpflug camera to capture up to 25,000 elevation points in less than two seconds, providing incredibly precise 3D imaging of the cornea and crystalline lens.

Key Applications:

• Refractive Surgery (LASIK/PRK): It is the gold standard for evaluating if a patient is a safe candidate for laser vision correction.
• Keratoconus Detection: The Pentacam is widely used to screen for and monitor progressive corneal diseases (like keratoconus) by mapping both the anterior and posterior surfaces of the cornea with high sensitivity.
• Cataract Surgery: It precisely maps the cornea and measures the anterior chamber, which is crucial for calculating the exact power of the intraocular lens (IOL) needed during cataract procedures.
• Glaucoma Screening: It evaluates the anterior chamber angle and cornea thickness, both of which are vital for assessing glaucoma risk.

Why It's Unique:

Unlike traditional topography maps that only evaluate the front curve of the cornea, the Pentacam provides a full 3D model of the anterior eye segment. It automatically corrects for minute eye movements during the scan and generates a topographical map that highlights elevations, depressions, and tissue thickness. [1, 2, 3]The OCULUS Pentacam AXL is a premium, non-contact ophthalmic tomographer that combines high-resolution rotating Scheimpflug imaging with optical biometry. Unlike traditional topographers that only map the front surface of the cornea, it captures detailed cross-sectional data of the entire anterior segment—including the posterior corneal surface and axial length—in under two seconds.

The primary clinical features and integrated technologies of the ⁠OCULUS Pentacam AXL span several specialized functions:

Core Imaging & Biometry Technologies:

• Rotating Scheimpflug Tomography: Captures up to 138,000 distinct elevation points to construct a true 3D model of the anterior eye segment. Measurements are highly reproducible and entirely independent of the tear film.
• Integrated Optical Biometry: Employs contact-free coherence interferometry to precisely measure the eye's axial length. This measurement occurs sequentially on the exact same alignment axis as the tomographic scan.

Corneal Topography & Pachymetry:

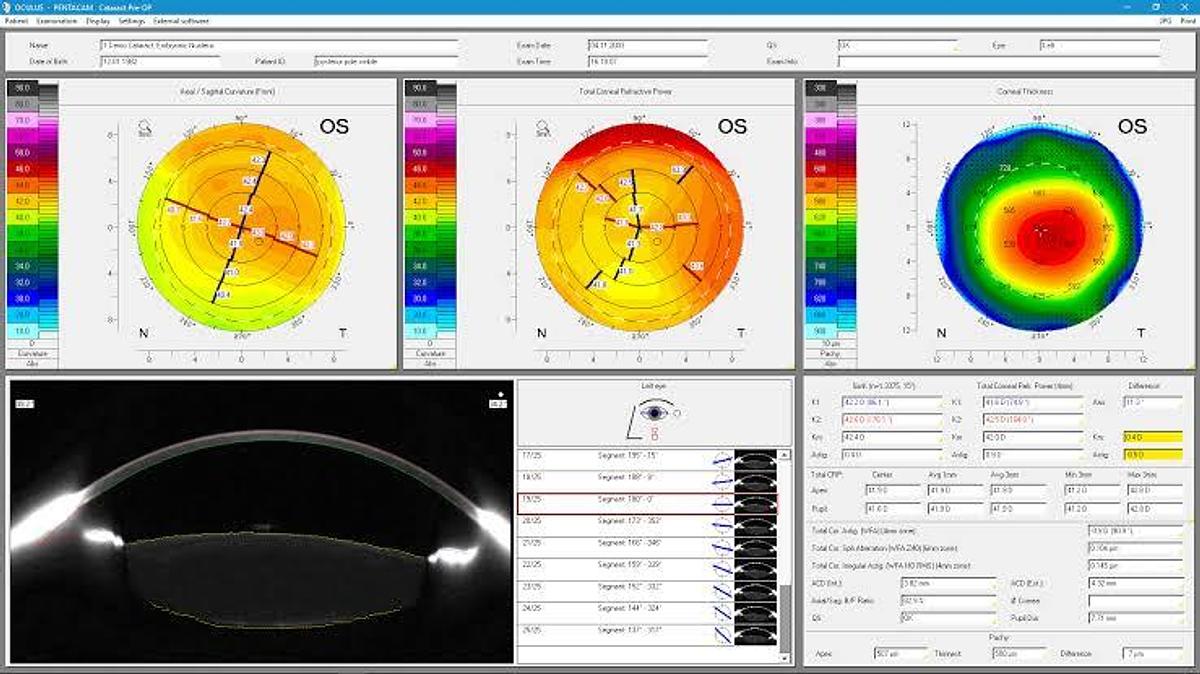

• Dual-Surface Elevation Mapping: Simultaneously tracks the curvature, elevation, and shape of both the front (anterior) and back (posterior) surfaces of the cornea from limbus to limbus.
• Full-Surface Pachymetry: Generates a continuous thickness map across the entire corneal surface, identifying the exact thinnest point.
• Total Corneal Refractive Power (TCRP): Calculates the actual refractive power of the cornea by combining data from both surfaces, eliminating the need to guess the posterior relationship.

Anterior Chamber & Lens Diagnostics:

• 3D Anterior Chamber Analysis: Quantifies crucial structural variables including anterior chamber depth, chamber volume, and exact chamber angle calculations.
• 3D Lens Densitometry: Evaluates the clarity and light-scattering properties of the cornea and crystalline lens to map out cataract progression.

Software Packets & Specialized Modules:

• IOL Calculation & Database: Features an integrated IOL calculator backed by a continuously updated database of up to 500 different intraocular lenses. It accommodates complex standard formulas as well as specialized ray-tracing formulas for post-refractive surgery eyes.
• Belin/Ambrósio Enhanced Ectasia Display: Offers a highly sensitive screening module to pinpoint early-stage ectasia and track structural keratoconus staging or progression.
• Fast Screening Reports: Provides automated, delegable summaries of crucial ocular parameters to accelerate patient workflows.
• Zernike Corneal Wavefront Analysis: Assesses higher- and lower-order corneal aberrations to measure overall optical quality.
